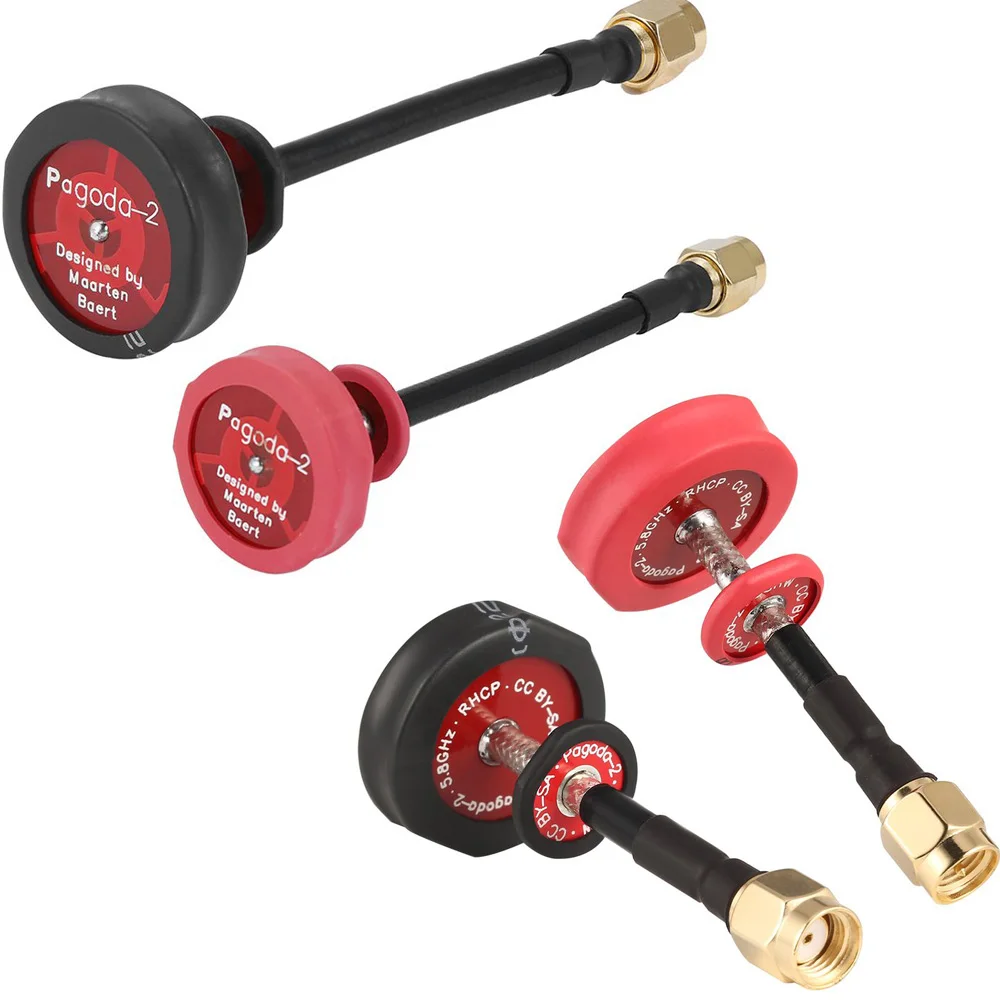

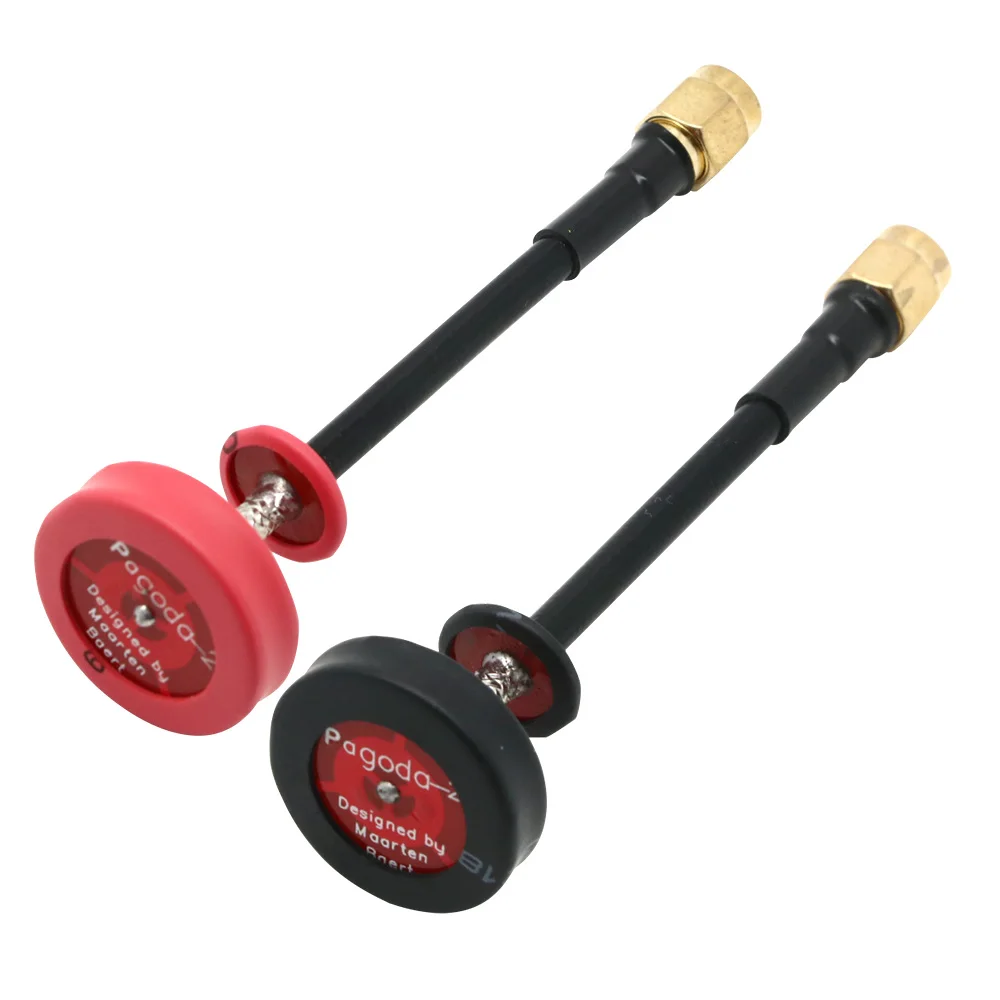

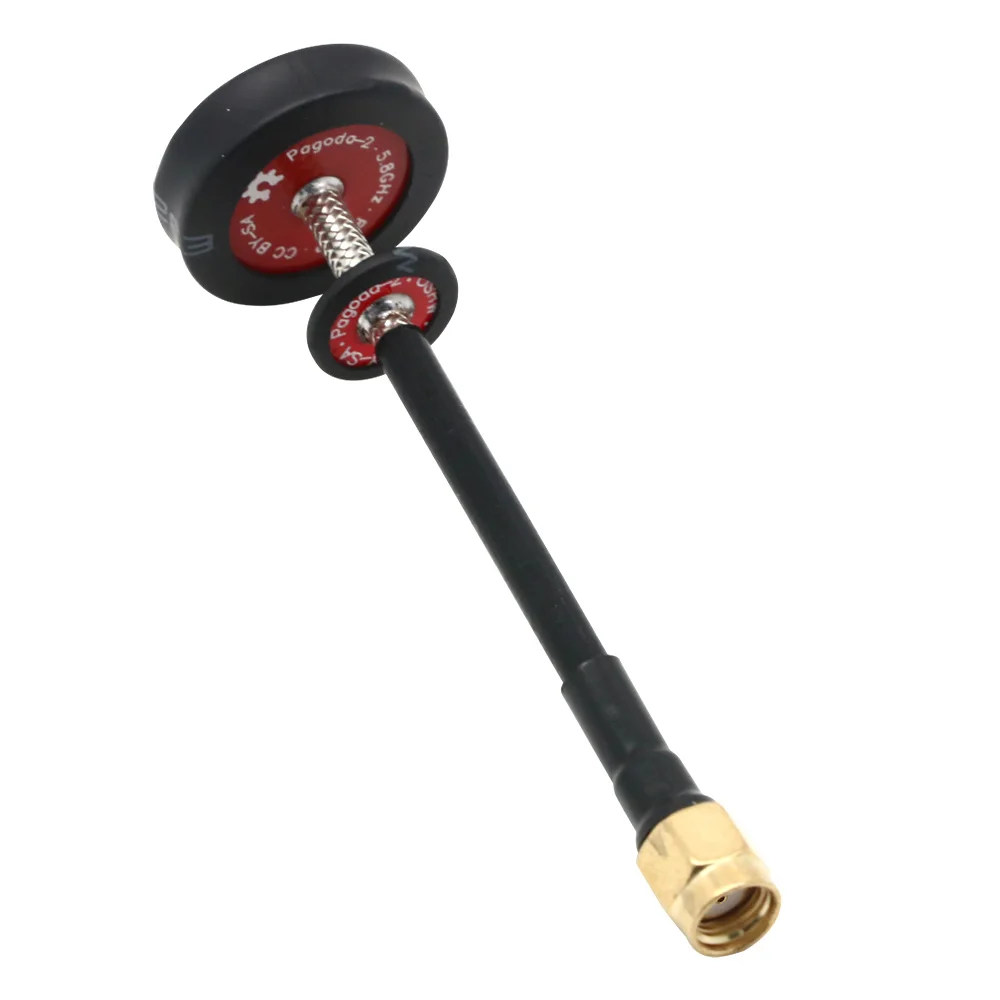

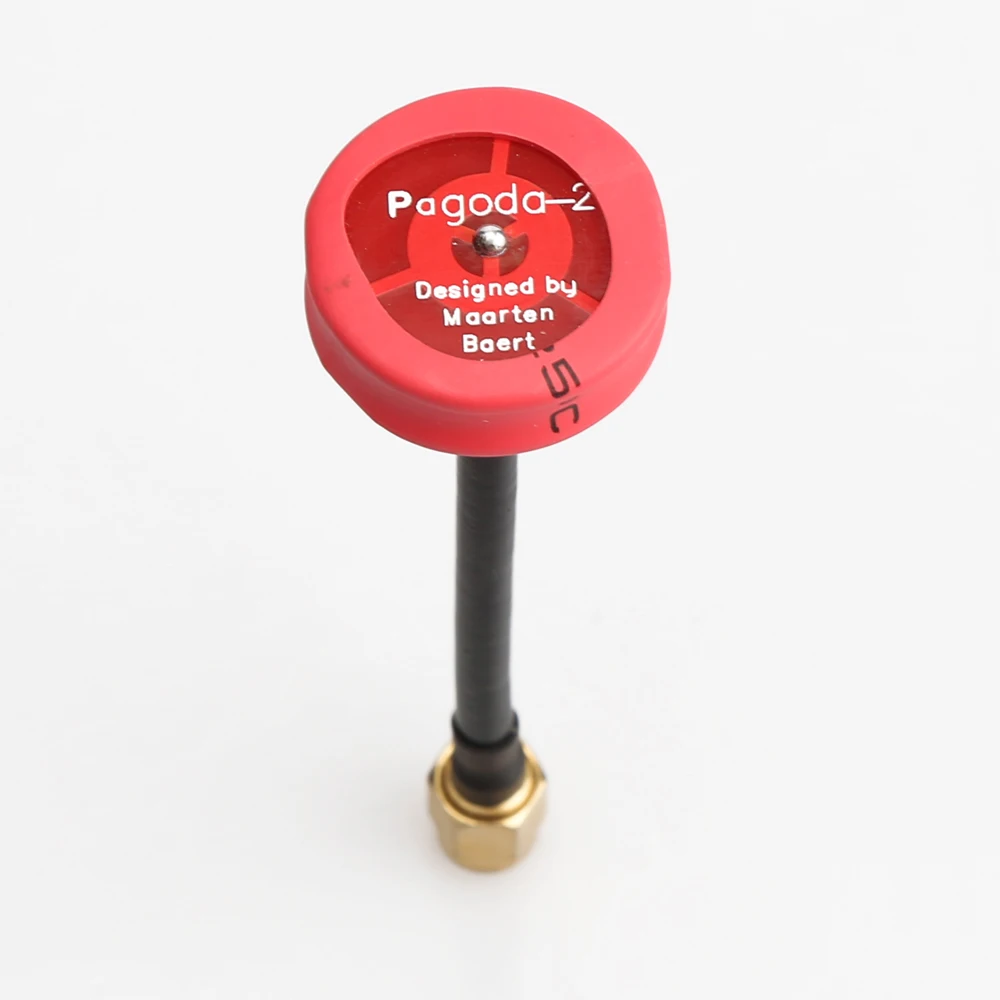

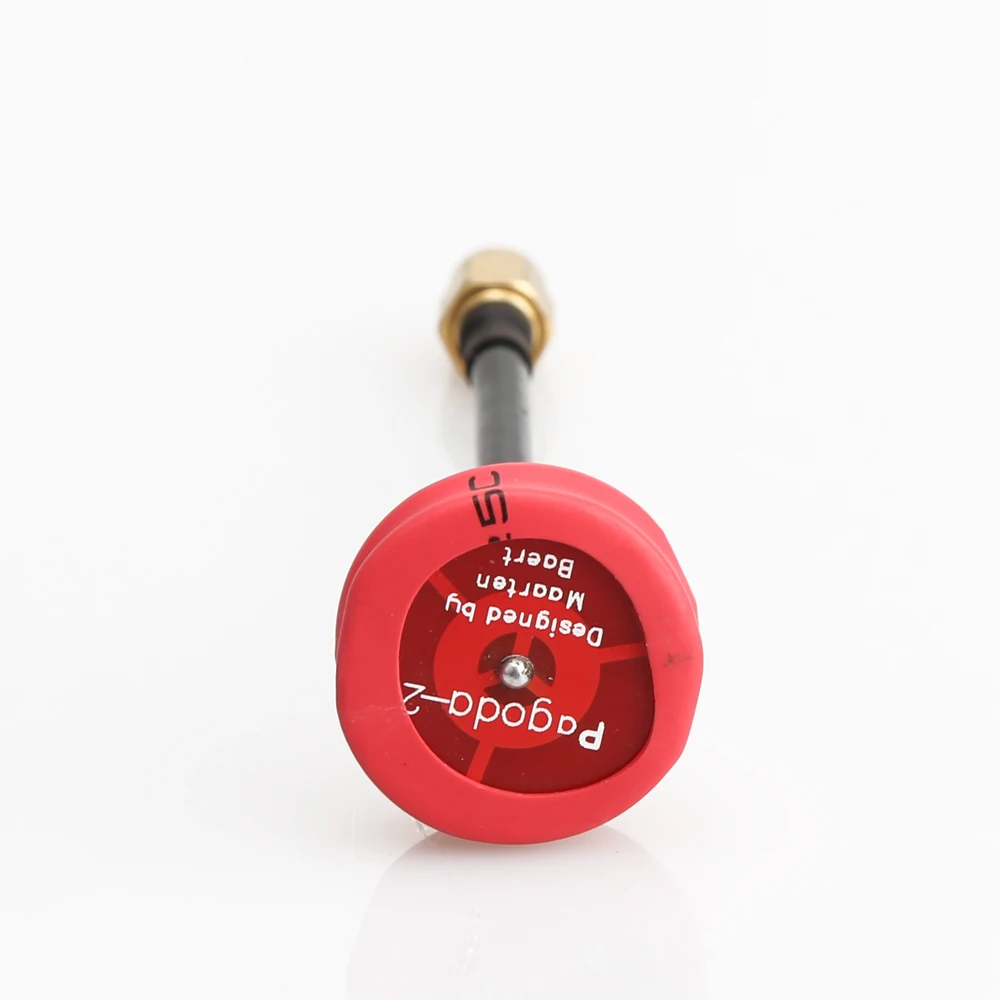

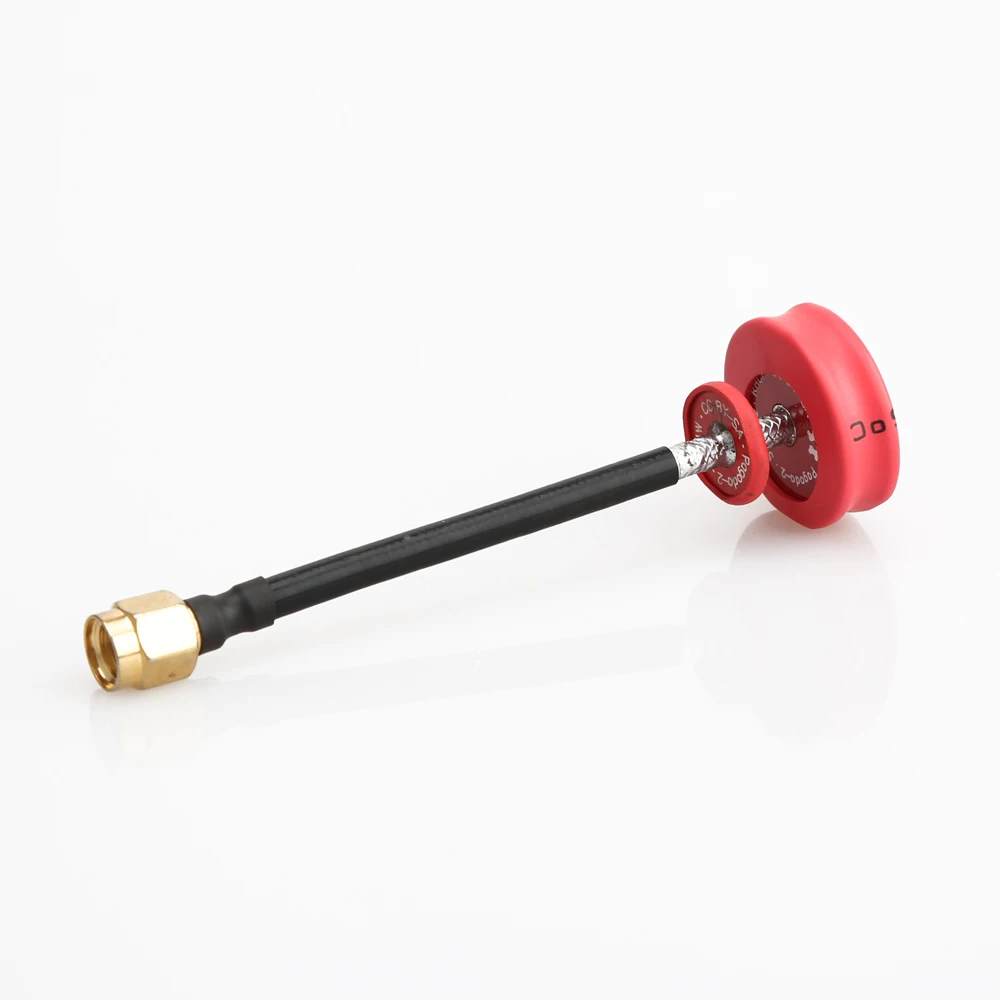

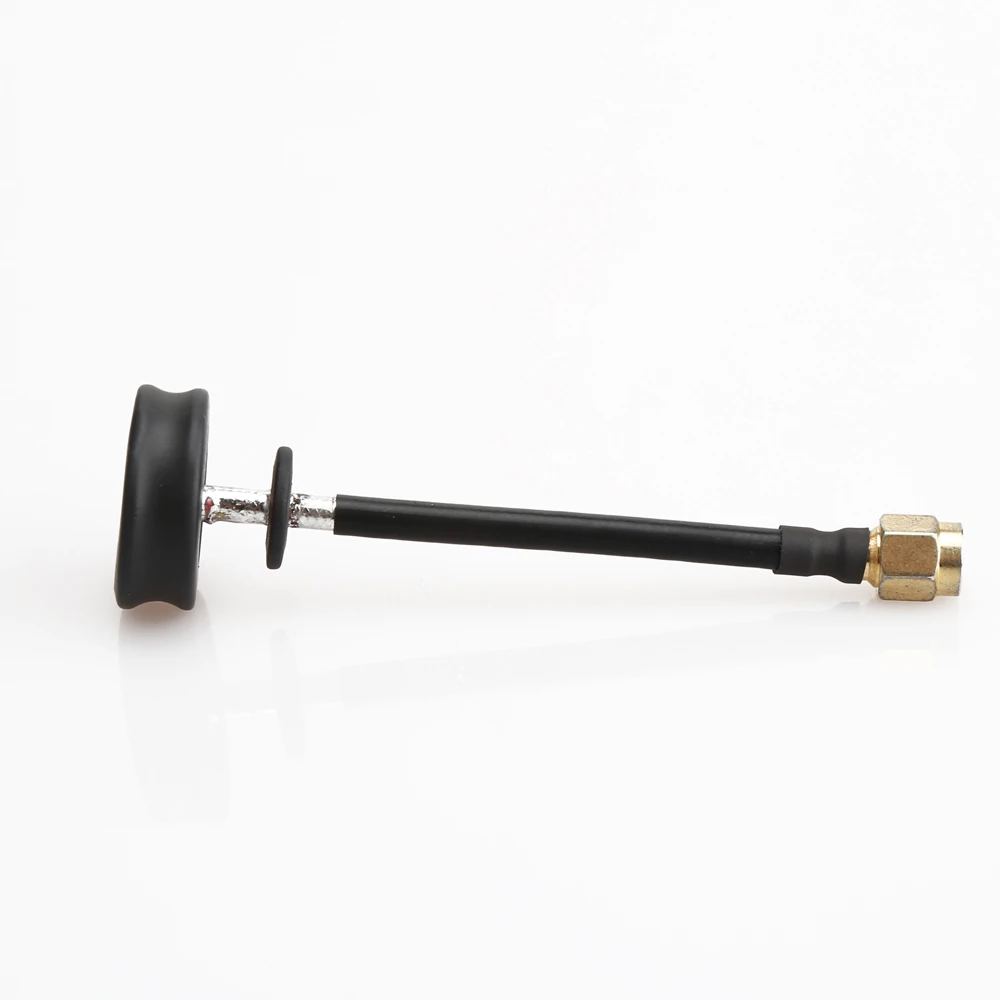

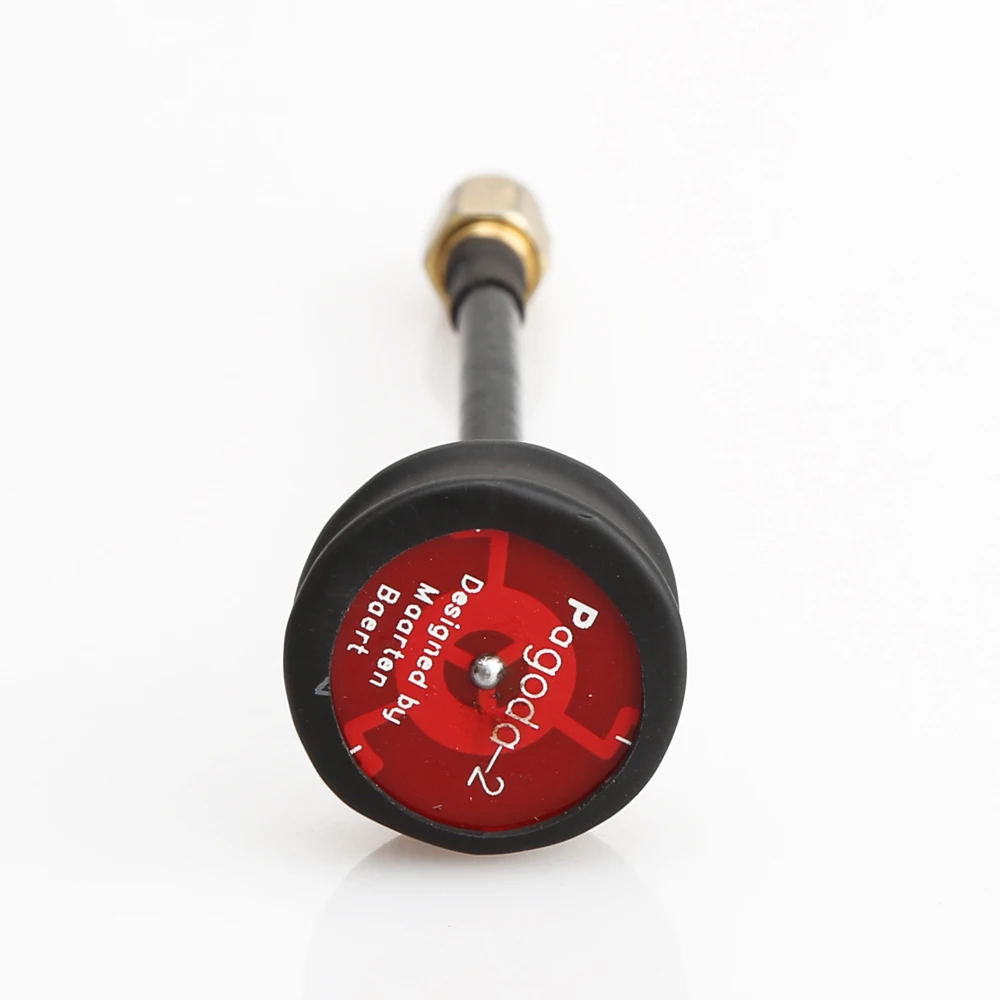

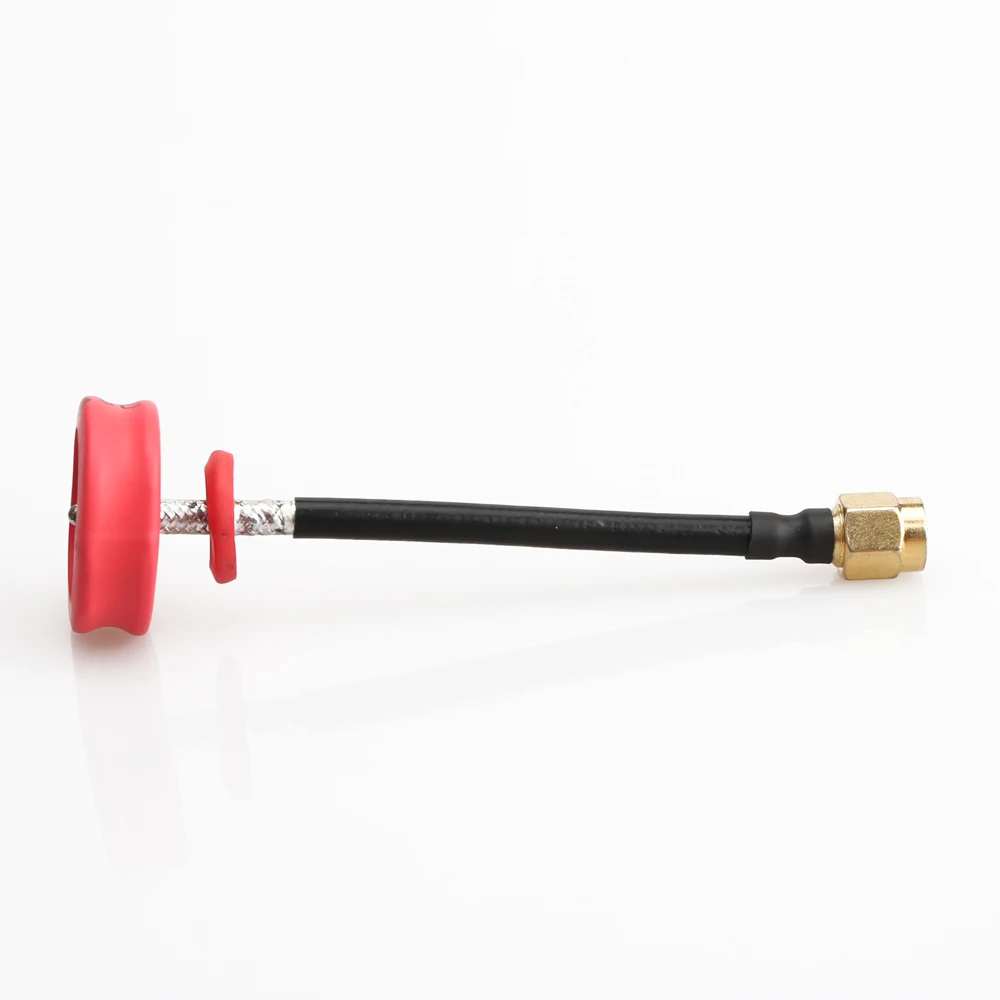

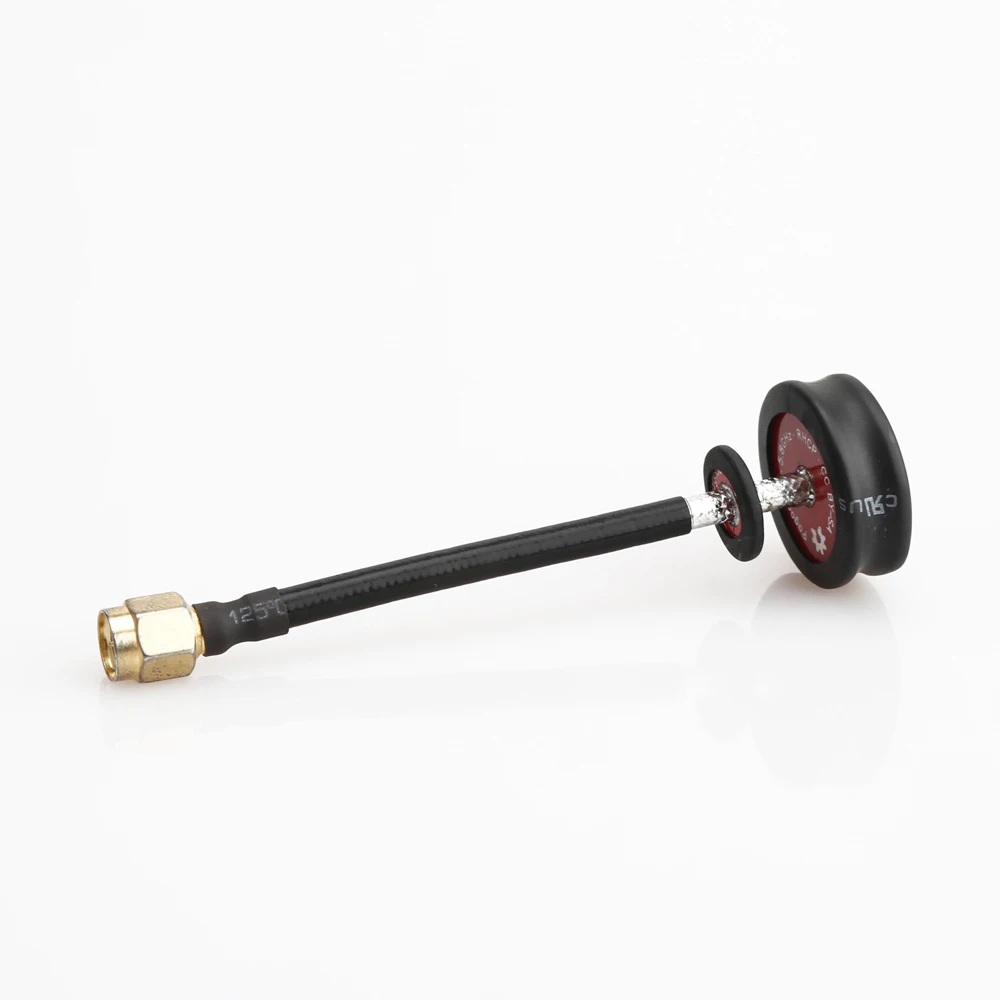

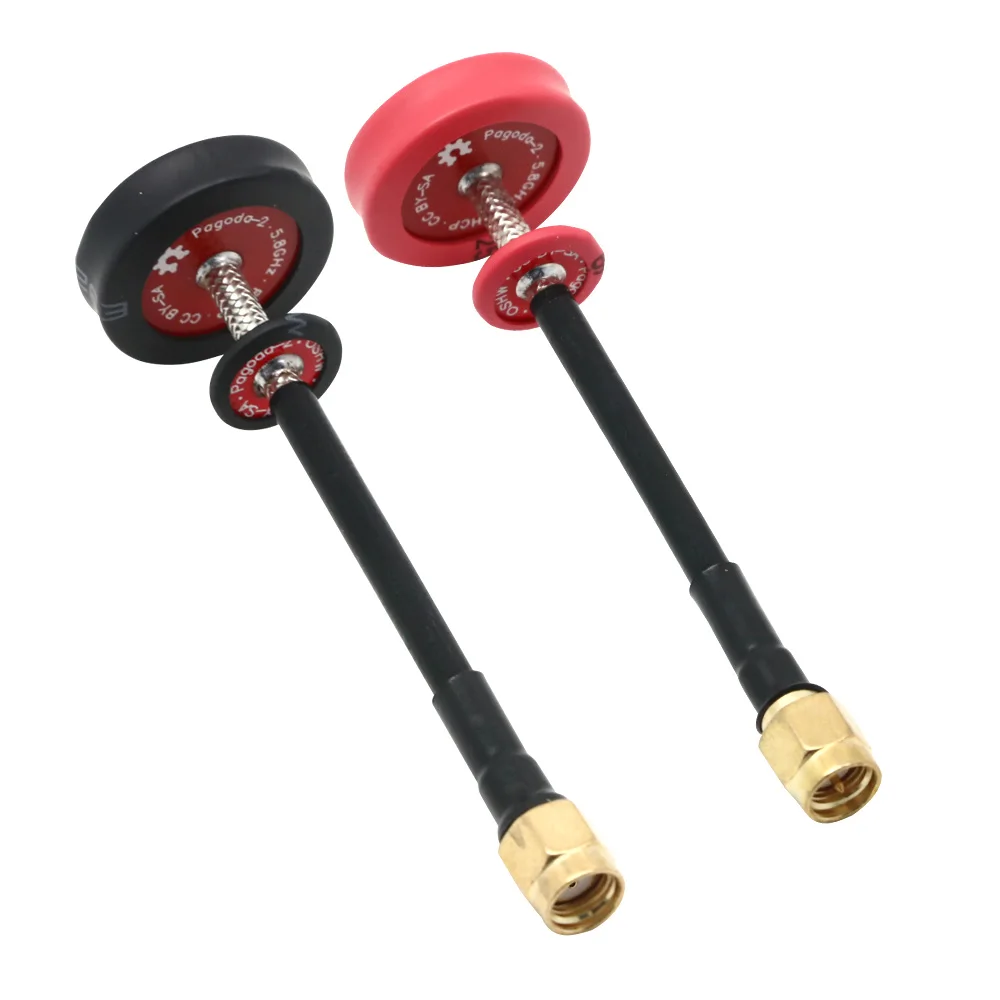

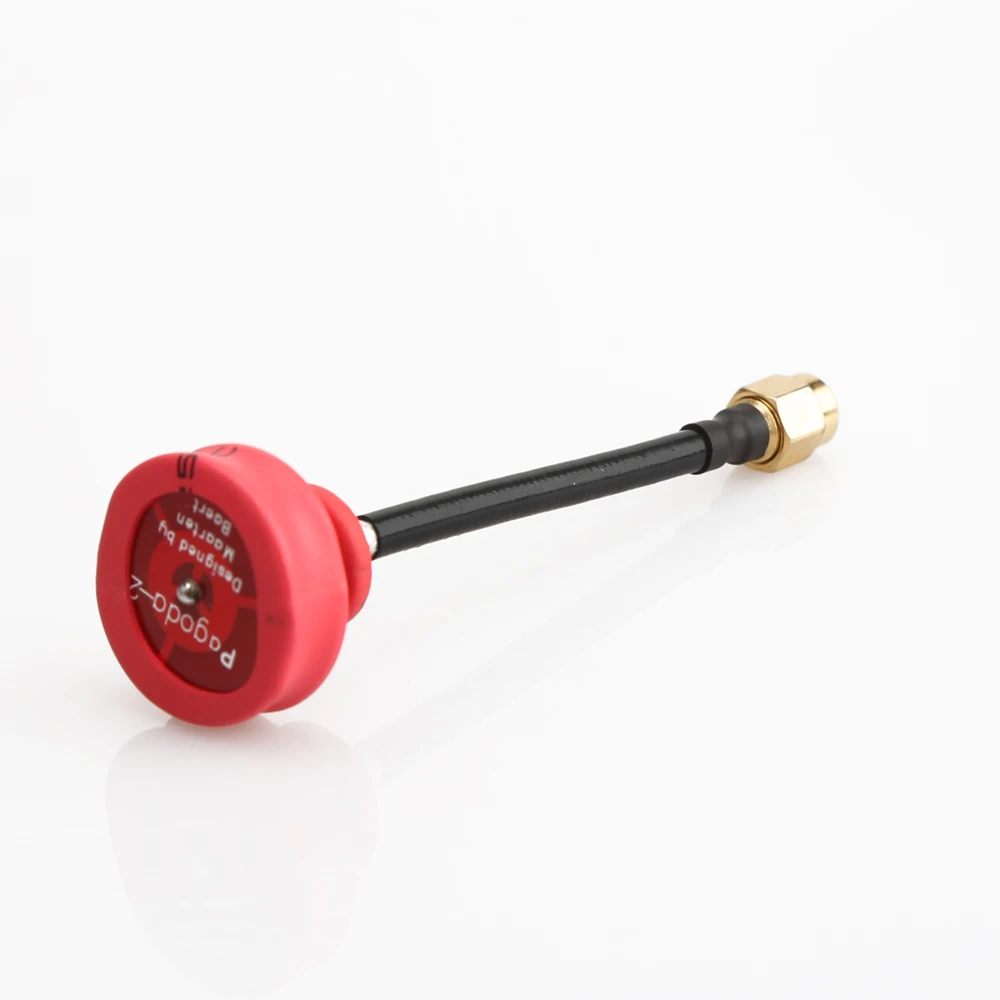

Pagoda 2 pagoda-2 5.8GHz FPV Antenna SMA & RP-SMA Plug Connector for RC FPV Racing Drone Quadcopter
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55 – 6.05 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Radiation efficiency: 95%
Quantity:2 piece
Connector: SMA/ RP-SMA
Color: Black / Red
Features:
– Omnidirectional circularly polarized antenna
– Light weight Small size
– The new technology metal main rod,almost perfect axial ratio
– Very low standing wave smooth omnidirectional radiation receiving mode
– Silicone case can be easily installed and removed,light weight protection antenna.

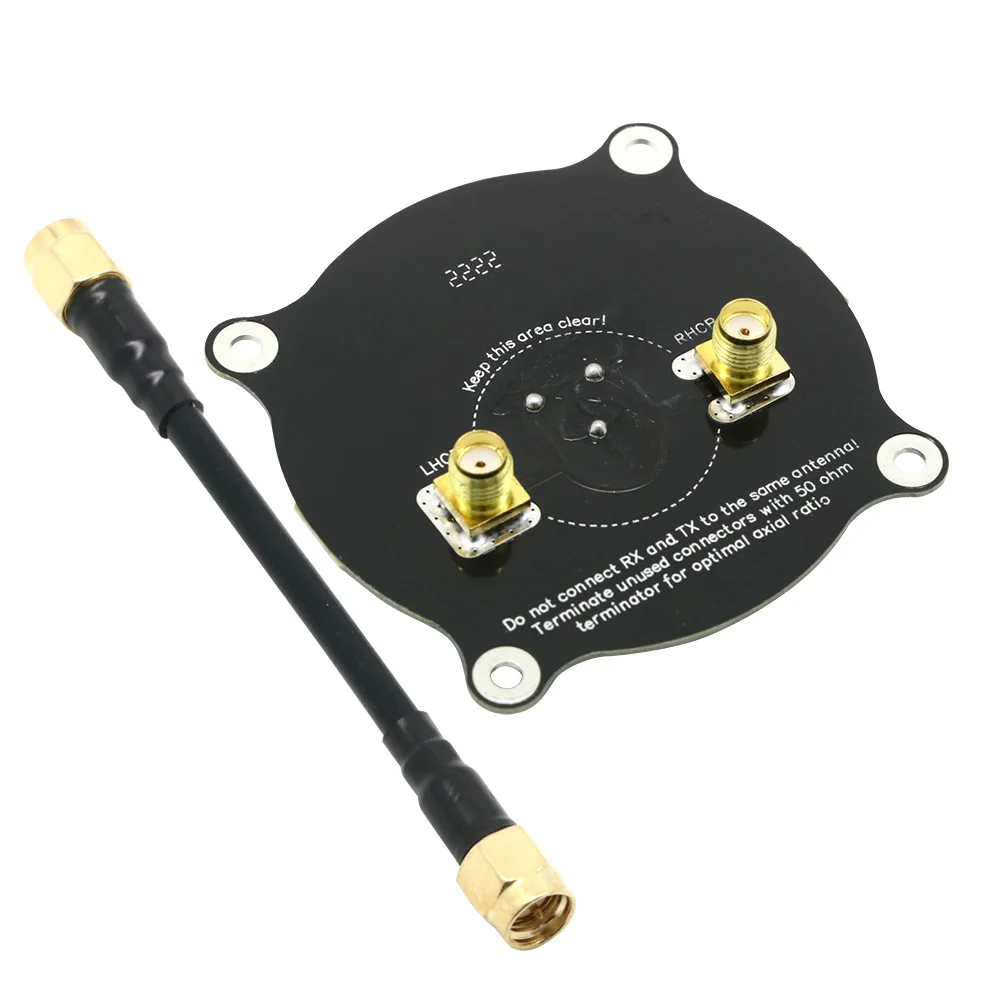

5.8GHz Triple Feed Patch Antenna SMA / RP SMA Directional Circularly Polarized Antenna for FPV Fatshark Goggles RC Drone
Features:
The Triple Feed Patch antenna is a directional circularly polarized antenna.
Good radiation efficiency.
Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz.
Good axial ratio, not just directly perpendicular to the patch but also off-center.
Cheap and easy to manufacture with high accuracy, even for a hobbyist.
Description:
Cheap and easy to manufacture with high accuracy, even for a hobbyist.
Specifications:
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 – 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 9.4 dBi
Half power beam width: 55° (horizontal and vertical)
Radiation efficiency: 83.5%
Weight:20.7g
Color: black
